Independently developed and produced by Shanghai Perfect Industry Co., Ltd., 7xxx Serious Aluminum Alloy Bars are high-strength structural metals based on an aluminum-zinc-magnesium alloy system. With aluminum content typically above 87%, the main alloying elements are zinc (zinc content 5%-10%) and magnesium (magnesium content 1%-3%), and copper can be added as an auxiliary alloying element (copper content 0.2%-2.0%) according to performance requirements. The synergistic effect of zinc and magnesium forms strengthening phases, which significantly improve the alloy's mechanical strength after heat treatment. Trace elements such as zirconium or chromium are also added to optimize grain structure and enhance corrosion resistance. Endowed with excellent high strength, good fatigue resistance, and reliable machinability, these bars are widely used in fields requiring high structural performance and load-bearing capacity, serving as a core material for aerospace, automotive lightweight structures, high-pressure vessels, and precision mechanical components.
1.Superior high strength and excellent fatigue resistance, suitable for high-load-bearing scenarios
2.Excellent machinability, adapting to precision processing requirements of complex components
3.Controllable corrosion resistance, with optimized performance through special heat treatment and surface treatment
4.Flexible customization of heat treatment states to match diverse application performance needs
5.High cost performance with stable high-quality and competitive pricing for high-strength grades
6.Authoritative quality certification and complete full-process product traceability system
|
Specification Item |
Details |
|
Product Model |
7xxx Serious Aluminum Alloy Bars (7075, 7050, 7005, 7A04, etc.) |
|
Material Composition |
Aluminum-zinc-magnesium based alloy, aluminum content ≥87%, zinc content 5%-10%, magnesium content 1%-3%, optional copper content 0.2%-2.0%, with trace amounts of zirconium, chromium, iron, silicon, etc. (total content of iron and silicon ≤0.5%) |
|
Diameter |
Round bar: 8mm - 300mm (customizable); Square bar: 12mm×12mm - 200mm×200mm (customizable); Hexagonal bar: Opposite side distance 10mm - 150mm (customizable) |
|
Length |
1500mm - 6000mm (supports custom cutting, maximum length up to 12000mm, cutting tolerance ±0.1mm) |
|
Corrosion Resistance |
Good atmospheric corrosion resistance; after stress relief annealing or over-aging treatment, it has excellent stress corrosion cracking resistance; salt spray corrosion resistance ≥2000 hours with customized surface treatment |
|
Machinability |
Excellent machinability in T6/T651 heat treatment state; suitable for turning, milling, drilling, grinding and other precision processing processes; good chip breaking performance |
|
Tensile Strength |
≥380MPa (T6 state for 7005); ≥500MPa (T6 state for 7A04); ≥540MPa (T6 state for 7075) |
|
Yield Strength |
≥310MPa (T6 state for 7005); ≥430MPa (T6 state for 7A04); ≥480MPa (T6 state for 7075) |
|
Elongation |
≥10% (T6 state for 7005); ≥8% (T6 state for 7A04); ≥7% (T6 state for 7075) |
|
Heat Treatment State |
T6 (solution heat treated and artificially aged), T651 (solution heat treated, stress relieved by stretching, and artificially aged), T73 (solution heat treated and over-aged, for improved corrosion resistance), O (annealed) |
|
Surface Treatment |
Natural oxidation, anodizing (color customizable), chemical conversion coating, electrophoretic coating, powder coating (optional); passivation treatment available for enhanced corrosion resistance |
1.Aerospace Industry (aircraft structural components, landing gear parts, engine accessories)
2.Automotive Manufacturing (lightweight body frames, suspension systems, brake components, racing car parts)
3.Precision Machinery (high-precision molds, tool holders, mechanical transmission parts)
4.High-Pressure Vessels & Hydraulic Systems (high-pressure cylinder barrels, hydraulic valve cores, pipeline connectors)
5.Sports & Leisure Products (high-end bicycle frames, golf club heads, climbing equipment)
6.Electronic Equipment (high-strength casings for precision instruments, heat dissipation structural parts)
7.Architectural Engineering (high-rise building curtain wall keels, decorative structural parts requiring high strength)
1.Raw Material Inspection: Strict screening of high-purity aluminum ingots, zinc ingots, and magnesium ingots, with full-component spectral analysis to ensure compliance with international standards
2.Production Process Supervision: Real-time monitoring of smelting temperature, quenching speed, aging time and temperature during production, with key process parameters recorded in real time for full traceability
3.Finished Product Testing: Comprehensive detection of mechanical properties (tensile strength, yield strength, elongation), hardness, dimensional accuracy, surface quality and corrosion resistance; 100% inspection before delivery, with unqualified products strictly eliminated
1.Deep industry expertise: Years of focus on high-strength aluminum alloy research and development, with a professional technical team and mature production experience in 7-series products
2.Strong production and sales guarantee: Two specialized production lines for high-strength aluminum alloys, 5,000 tons of standing inventory, and efficient supply chain management to meet large-order demands
3.Exceptional cost control advantage: Integration of raw material procurement, production, and sales, reducing intermediate links to offer competitive prices for high-strength grades
4.Authoritative quality certification guarantee: Certified by ISO9001, SGS, and other international systems, with products meeting ASTM, EN, and GB standards, and passing aerospace-grade performance tests
5.Comprehensive and considerate service throughout the process: One-stop solutions from pre-sales technical consultation, customized sample provision, to after-sales technical support and logistics tracking

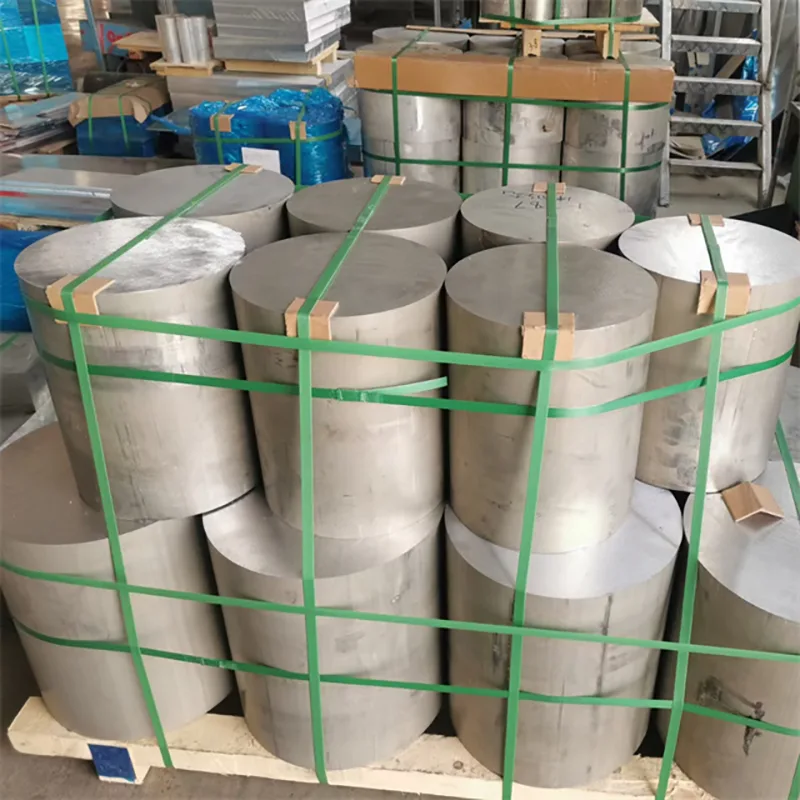

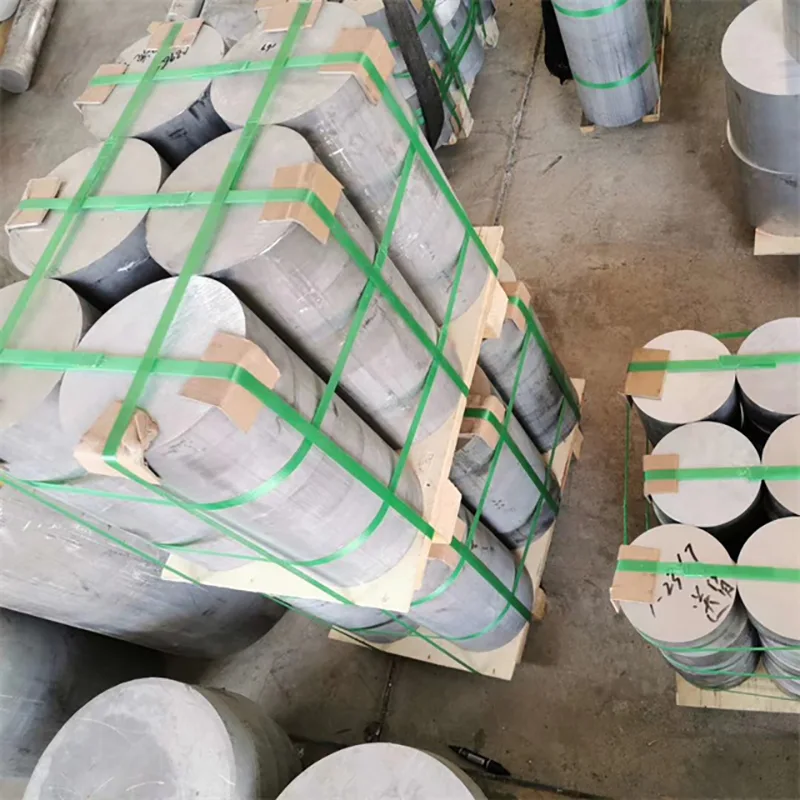

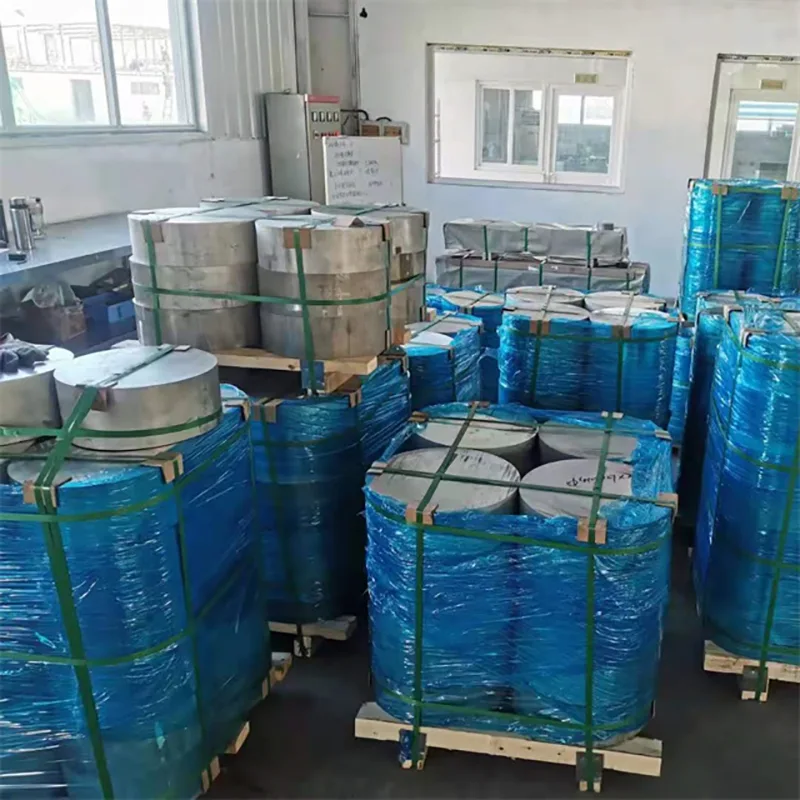

1.Inner Packaging: Each bar is wrapped with moisture-proof, scratch-resistant PE film, and coated with anti-rust oil for coastal or long-distance transportation to prevent oxidation and corrosion; precision-machined bars are protected with plastic caps at both ends
2.Outer Packaging: High-quality fumigation-free wooden pallets or steel frames are used for fixing, bundled with high-strength steel straps to ensure stability during long-distance and ocean shipping. Small-diameter or precision bars are packed in thickened cartons or iron drums with shock-absorbing filler.
3.Custom Packaging: Support customized packaging solutions according to customer requirements (such as vacuum packaging, anti-corrosion film wrapping, waterproof packaging) to adapt to different transportation methods and storage conditions.
1.Q: Do you provide samples? How to apply for samples?
A: We provide free standard samples (size: A4), and customized sample sizes are available for a reasonable fee. You can contact our sales team via email or phone to provide your company information, product model, heat treatment state, and specification requirements, and we will arrange sample delivery promptly.
2.Q: What payment methods are supported?
A: We support T/T, L/C, D/P, and other international common payment methods. For long-term cooperative customers, we can provide more flexible payment terms. Specific payment terms can be negotiated according to the order quantity, cooperation cycle, and customer needs.
3.Q: How to ensure the product quality during transportation?
A: We use professional packaging suitable for high-precision high-strength aluminum alloy products, with shock-absorbing and anti-corrosion protection measures, and cooperate with logistics companies with rich experience in international metal transportation to minimize the risk of product damage. Additionally, we can purchase transportation insurance for customers to provide double protection.
4.Q: Are you a manufacturer or a trader?
A: We are a group company integrating production, warehousing, and sales, consisting of two trading companies, three warehouses, and one factory. We operate three advanced production lines (including two specialized in high-strength aluminum alloys) and maintain a standing inventory of 8,000 tons (5,000 tons for 7xxx Serious Aluminum Alloy Bars). Shanghai Perfect Industrial Co., Ltd. is mainly responsible for overseas sales, and we are also authorized distributors for several large state-owned aluminum factories in China, ensuring stable supply and product quality.
•Provide free standard samples (size: A4), and customized sample sizes are available for a reasonable fee.
•Sample delivery time: 3-5 working days after confirming sample requirements and shipping information.
